Microservice Capabilities for Data and Information Management

Data and information management services support the storage, transfer, and analysis needs of data, metadata, and information produced or consumed within INTERSECT campaign ecosystems.

Data storage services generally store and retrieve data items or data collections in one or more data namespaces. The services may optionally provide data compression for efficient use of storage space, data-at-rest encryption for secure storage, and data versioning. Three common types of data storage services include file storage, key-value storage, and object storage.

File storage services store and retrieve files in a hierarchical file system namespace. File names are strings that are unique only within their enclosing directory. Related technologies include archival storage systems (e.g., HPSS), local file systems, cloud file storage and sharing services (e.g., DropBox [B75], Google Drive [B76], and Microsoft OneDrive [B77]), and distributed or parallel file systems (e.g., GPFS, Lustre, and NFS).

Key-value storage services store and retrieve key-value pairs in a flat namespace. The unique keys are often strings, but may be arbitrary data blobs. Values may be arbitrary data blobs or have service-specific structure. These services typically provide volatile memory-based storage, but some offer data durability functionality to store data on stable storage devices such as HDD or NVM devices. Related technologies include popular cloud infrastructures such as Memcached [B78] and Redis [B79].

Object storage services store and retrieve named objects or object collections in a flat namespace. Object names are unique strings within their namespace. The data associated with objects may be arbitrary blobs, including structured and unstructured data. Relevant technologies include Amazon S3 [B80], Google Cloud Storage [B81], Microsoft Azure Blob Storage [B82], and MinIO [B83].

Data transfer services facilitate the transfer of data products or data streams from producers to consumers. The services may optionally provide data compression for efficient use of network resources and encryption for secure data communication. Two common types of data transfer services include file transfer and data streaming.

File transfer services are designed to transfer files from one file storage service to another file storage service, typically via a custom file transfer protocol such as FTP or GridFTP [B84]. These services may support batched file transfers containing multiple files or entire directory hierarchies. Relevant technologies include Globus [B85] and file transfers based on HTTP, HTTPS, and SSL.

Data streaming services provide streaming data transfers from one source service to another destination service. The data streams may be raw, object- or structure-based, or file-based. Some services support concurrent transfers of multiple data streams between a given source and destination. Relevant technologies include cloud data and event streaming frameworks such as Apache Kafka [B86] and Amazon Kinesis [B87].

Database and information management services store, retrieve, and support queries over data and associated metadata with potentially complex relationships. These services may optionally provide data indexing or compute-in-data features to optimize query performance. Relevant technologies include relational databases (e.g., MySQL [B88], PostgreSQL [B89], and SQLite [B90]) and non-relational document stores (e.g., MongoDB [B91]), columnar stores (e.g., Amazon DynamoDB [B92], Apache Cassandra [B93], Google BigTable [B94]), and graph databases (e.g., Neo4J [B95] and Amazon Neptune [B96]).

Data Management Microservices for Campaigns

The INTERSECT microservice capabilities for data management are designed around a flexible, generalized data model as shown in Fig. 127. A campaign workflow produces or consumes data from one or more Data Namespaces, which are uniquely-named logical containers for Data Items, Data Collections, and Data Streams. Data Items represent uniquely-named pieces of data such as files, objects, or key-value pairs. Data Collections are uniquely-named collections of Data Items, and correspond to grouping mechanisms such as directories, object buckets, or table records. Data Streams represent uniquely-named streaming data sources that can support multiple stream consumers. The data stream elements are Data Items with names corresponding to the element indices.

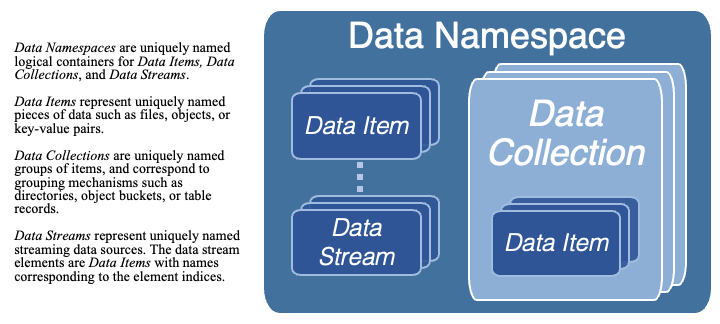

INTERSECT Microservices Data Model

Fig. 127 INTERSECT Microservices Data Model

To facilitate workflows across interconnected science ecosystems, each INTERSECT system is expected to provide a Data Management service that supports the data storage and transfer needs of services and applications within the system. Furthermore, the Campaign Orchestrator service that orchestrates the execution of campaign workflows is expected to manage a catalog of Data Products corresponding to Data Items or Data Collections and orchestrate data movement between producers and consumers.

Explicit management of data products is key to enabling campaign workflow orchestration within INTERSECT ecosystems. Currently, the microservice capabilities for data management include storage (see Capability - Data and Information Management :: Data Storage), publishing (see Capability - Data and Information Management :: Data Catalog), and transfer (see Capability - Data and Information Management :: Data Transfer Orchestration and Capability - Data and Information Management :: Data Transfer Endpoint).

An application or service that produces data to be consumed by other applications or services must first store the data item or collection within its system’s data management service. Fig. 128 shows an example orchestration sequence for an application to manage its data namespaces. Fig. 129 shows an example orchestration sequence for an application to manage a data collection within its namespace. Fig. 130 shows an example orchestration sequence for an application to manage data items within its namespace.

Interaction sequence for managing a data namespace

Fig. 128 Microservice interaction sequence for an application to manage a data namespace.

Interaction sequence for managing a data collection

Fig. 129 Microservice interaction sequence for an application to manage a data collection.

Interaction sequence for managing data items

Fig. 130 Microservice interaction sequence for an application to manage its data items.

Once stored, the data product can be published to a data catalog service to alert orchestrators or consumers that the data is available. Fig. 131 shows an example orchestration sequence for a workflow to allocate application data product UUIDs for use by an application to publish its data products to a campaign data catalog.

Interaction sequence for publishing data products

Fig. 131 Microservice interaction sequence for an application to publish its data products.

When the workflow requires the data product(s) to be made available on remote systems, the orchestrator can arrange for the data to be transferred to the data management service of the consumer’s system, as shown in Fig. 132, Fig. 133, and Fig. 134.

Interaction sequence for negotiating data transfers

Fig. 132 Microservice interaction sequence for negotiating data transfers between INTERSECT systems.

Interaction sequence for transfering a data product

Fig. 133 Microservice interaction sequence for transfering a data product between INTERSECT systems.

Interaction sequence for transfering a data item

Fig. 134 Microservice interaction sequence for transfering a data item between INTERSECT systems.

Information Management Microservices for Campaigns

The INTERSECT microservice capabilities for information management represent well-established methods such as entity-relationship (ER) models and both relational and non-relational databases.

An ER model provides a flexible representation of arbitrary information about unique entities and their relationships to other entities. Such models have widespread uses and are supported by services providing the Entity-Relationship Catalog capability (see Capability - Data and Information Management :: Entity-Relationship Catalog).

Relational databases provide ACID transactions and complex queries over structured relations defined by a schema in one or more tables, and may support advanced data indexing for query performance optimization.

Non-relational databases provide non-transactional data updates and queries over unstructured data and information such as objects, columnar data, time-series data, or graphs.

Capability Definitions for Data and Information Management
