Operator monitors Resources

Preconditions

The user is logged into INTERSECT with the operator role assigned.

Postconditions

The operator will see a table with resource classification, status, and dates being used for campaigns along with other resource health stats.

Methodologies

• This view should provide a sortable table

  • The table should have the following columns:

    • Resource Name

    • Resource Classification - e.g. Physical.Microscope.ScanningTransmissionElectronMicroscope, Physical.3DPrinter.Blah, etc.

    • Resource state - available / in-use / degraded / down

    • Resource state identifier or notes

      • Nothing in the case of “available”

      • Campaign ID in case of “in-use” with link to Campaign details

      • In case of “down” or “degraded’ - few-word summary of the log (instead of a long description. More details could be obtained from the detailed view of the Resource’s logs / history.

      • Detailed log messages would only be visible to the Owner and OMs of the Resource and not to the User). OM should be allowed to edit this identifier message

    • Date and time of last change in state

    • Date and time for next Campaign

    • Up-time

    • Performance metric(s)

    • Compliance with INTERSECT requirements - this requires more thought.

Todo

This view should also provide graphical representations of the state / history of individual resources?

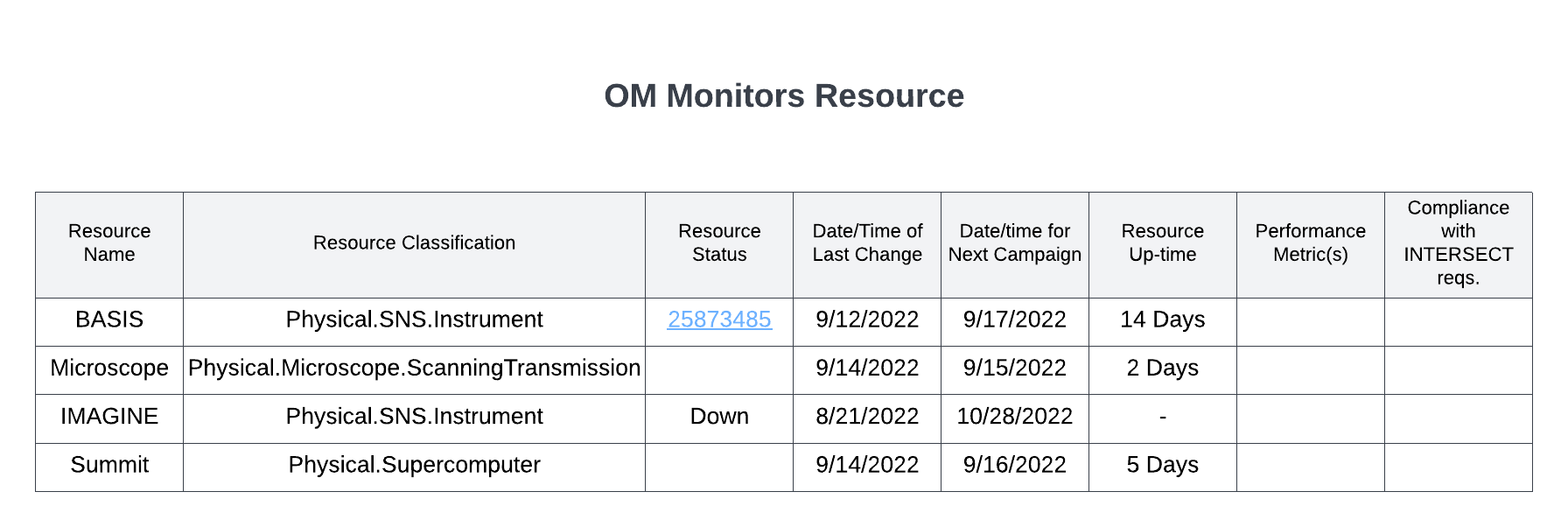

An example interface is depicted in Fig. 100.

Fig. 100 Operator / Maintainer monitors resource.
