N-Version Design

The N-Version Design structural pattern is a derivative of the Design Diversity architectural pattern and the Compensation strategy pattern in the original resilience design pattern specification (Fig. 32) [B24]. It offers detection, containment, and mitigation with continuous operatation in the presence of an error or failure, and with none-to-little interruption and no loss of progress. The following describes the Pattern and its application in the System Scope and in the Service Scope of the INTERSECT federated ecosystem for instrument science. Note that the Pattern description uses the terms system, subsystem, and service in an abstract way, while the System Scope and the Service Scope map those terms to the INTERSECT federated ecosystem.

Pattern

Problem

A hardware or software error or subsystem failure due to a design fault (e.g., human mistake or defective design tool) causes a software, such as a service, to experience an error and potentially a subsequent failure.

Context

The pattern applies to a system that has the following characteristics:

  • The system is deterministic, i.e., forward progress of the system is defined in terms of the input state to the system and the execution steps completed since system initialization.

  • The system has a well-defined specification for which multiple implementation variants may be created.

  • There is an implicit assumption of independence between multiple variants of the implementation.

Forces

  • The pattern introduces an execution time and/or resource requirement (storage space, computational capability, etc.) penalty independent of whether an error or failure occurs during system operation or not.

  • The scope and strength of the diversity employed by the pattern determine its execution time and resource requirement overhead.

  • The pattern requires distinct implementations of the same design specification, which may need to be created by different individuals.

  • The pattern increases design complexity due to the need of additional design and verification effort required to create multiple implementations.

  • The pattern may introduce a performance penalty during error/failure-free operation due to disparity in the implementation variants.

Solution

The pattern enables the continuous correct operation of a system impacted by an error or failure. It supports resilient operation by applying redundancy to system state and optionally to system resources. This redundancy is in the form of \(N\) functionally equivalent alternate system implementations. This pattern designs different implementations of the system that are functionally equivalent to enable error and failure resilience through design diversity. Different implementations of the system are less likely to experience the same error or failure.

The pattern requires very well defined input and output to permit input replication and output validation. Input is replicated to functionally equivalent alternate system implementations, processed by each implementation of the system, and the output is then validated. The validation corrects an error or failure of a system implementation. The scope and strength of the redundancy are defined by the number of functionally equivalent alternate system implementations \(N\) and by their implementation design diversity.

Redundancy can be in time, meaning the same system resources execute the \(N\) equivalent alternate system implementations in time. Redundancy can also be in space, meaning additional (redundant/diverse) system resources execute the \(N\) equivalent alternate system implementations in space. Redundancy in time saves system resources, while redundancy in space offers more error/failure coverage. A mix between redundancy in time and space is possible as well, where there are more equivalent alternate system implementations than additional (redundant/diverse) system resources. The components of this pattern are illustrated in Fig. 63.

N-Version Design pattern components

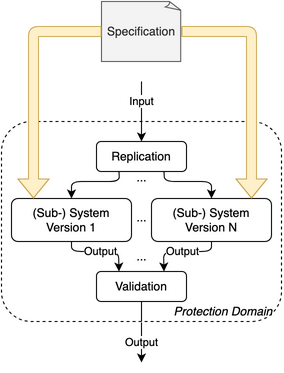

Fig. 63 N-Version Design pattern components

Capability

A system using this pattern is able to continue to operate in the presence of an error or failure with no or minimal interruption. This pattern provides error and/or failure detection in the system by applying redundancy to system state in the form of \(N\) functionally equivalent alternate system implementations. The pattern provides mitigation of an error or failure in the system by applying redundancy to system state and optionally to system resources, such that the system continues to operate correctly in the presence of such an event. The flowchart of the pattern is shown in Fig. 64, the state diagram in Fig. 65, and its parameters in Table 14.

Flowchart

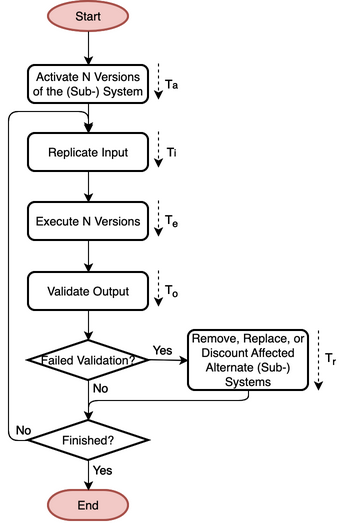

Fig. 64 Flowchart

State diagram

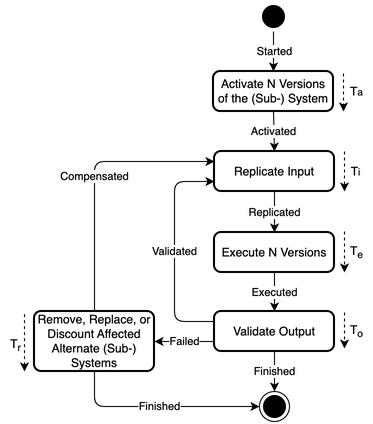

Fig. 65 State diagram

Table 14 N-Version Design pattern parameters

Parameter

Definition

\(T_{a}\)

Time to activate \(N\) versions of the (sub-) system

\(T_{i}\)

Time to replicate the input to the \(N\) versions of the (sub-) system

\(T_{e}\)

Time to execute (sub-) system progress in the \(N\) versions of the (sub-) system

\(T_{o}\)

Time to validate the output from the \(N\) versions of the (sub-) system

\(T_{r}\)

Time to remove, replace, or discount the affected redundant (sub) system version(s)
Protection Domain

The protection domain extends to the system state and the system resources described by the design specification that implement the \(N\) functionally equivalent alternate systems.

Resulting Context

Correct operation is performed despite an error or failure impacting the system. Progress in the system is not lost due to an error or failure. The system is not interrupted during error/failure-free operation or when encountering an error or failure. Resource usage in time or space is increased according to the amount of redundancy employed in the form of \(N\) functionally equivalent alternate system implementations and due to the difference in resource usage and execution time of the \(N\) functionally equivalent alternate system implementations.

A trade-off exists between the amount of redundancy employed and the number of errors and/or failures that can be tolerated at the same time and/or in time. More redundancy tolerates generally more errors and/or failures, but requires either more resources or more execution time.

The pattern may be used in conjunction with other patterns that provide containment and mitigation in a complementary fashion, where some error/failure types are covered by the other pattern(s) and the pattern covers for the remaining error/failure types.

Performance

The error/failure-free performance \(T_{f=0}\) of the pattern is defined by the task total execution time without any resilience strategy \(T_{E}\) (the worst case execution time of N versions of the (sub-) system), the total time to activate N versions of the (sub-) system \(T_{a}\), and the time to replicate the input to the N versions of the (sub-) system \(T_{i}\) and the time to validate the output from the N versions of the (sub-) system \(T_{o}\) with the total number of input-execute-output cycles \(P\).

\[\begin{aligned} T_{f=0} = T_{E} + T_{a} + P (T_{i} + T_{o}) \end{aligned}\]

The performance under errors/failures \(T_{f!=0}\) is defined by the failure free performance \(T_{f=0}\) plus the time to remove, replace, or discount the affected redundant (sub) system replica(s) \(T_{r}\) for each of the errors or failures \(N\). Assuming constant times to remove, replace, or discount the affected redundant (sub) system replica(s) \(T_{r}\) and a ratio for replication in space vs. in time of \(\alpha\), the performance under errors/failures \(T_{f!=0}\) can be reformulated to:

\[\begin{aligned} T_{f!=0} = \alpha T_{E} + (1 - \alpha) N T_{E} + T_{a} + P (T_{i} + T_{o}) + N T_{r} \end{aligned}\]
Reliability

The reliability \(R(t)\) of a system applying this pattern is defined by the parallel reliability of the \(N\)-redundant execution and the performance under errors/failures \(T_{f!=0}\), assuming constant probabilistic rate \(\lambda_{n}\) of errors and failures for each redundant execution (or its corresponding inverse, the MTTI \(M\)). It can be simplified for redundancy of identical systems \(R_{i}(t)\), assuming an identical constant probabilistic error/failure rate \(\lambda\) (or its corresponding inverse \(M\)).

\[\begin{split}\begin{aligned} R(t) &= 1 - \prod_{n=1}^{N}(1-e^{-\lambda_{n} T_{f!=0}}) = 1 - \prod_{n=1}^{N}(1-e^{-T_{f!=0}/M})\\ R_{i}(t) &= 1 - (1 - e^{-\lambda T_{f!=0}})^{N} = 1 - (1 - e^{-T_{f!=0}/M})^{N} \end{aligned}\end{split}\]
Availability

The availability \(A\) of a system applying this pattern is defined by \(N\)-parallel availability and the performance under failure \(T_{f!=0}\). It can be simplified for redundancy of identical systems \(A_{i}\). If \(T_{a}\), \(T_{i}\), \(T_{d}\), \(T_{r}\), and \(T_{f}\) are small enough, non-identical and identical availability can be simplified further, where \(M_{n}\) (or \(M\)) is the MTTI and \(R_{n}\) (or \(R\)) is the mean-time to recover (MTTR) of each individual system (\(T_{f}\)).

\[\begin{split}\begin{aligned} A &= 1 - \prod_{n=1}^{N} (1 - A_{n})\notag\\ &= 1 - \prod_{n=1}^{N} \left(1 - \frac{T_{E,n}}{T_{n}}\right)\\ A_{i} &= 1 - (1-A)^{N}\notag\\ &= 1 - \left(1 - \frac{T_{E}}{T}\right)^{N} \end{aligned}\end{split}\]
\[\begin{aligned} A &= 1 - \prod_{n=1}^{N} \left(1 - \frac{M_{n}}{M_{n} + R_{n}}\right) A_{i} &= 1 - \left(1 - \frac{M}{M + R}\right)^{N} \end{aligned}\]
Examples

In high-performance computing (HPC) environments, various versions of the same software are used for the detection of implementation errors. This applies to completely different implementations of the Message Passing Interface (MPI) standard and to numerical libraries as well as to different versions of the same implementation. Regression and comparison tests are performed to identify incorrect behavior, missing features and performance problems.

Rationale

The pattern enables a system to tolerate an error or failure through continuation of correct operation after impact. It relies on system state redundancy in the form of functionally equivalent alternate system implementations. The pattern performs mostly proactive actions, such as maintaining redundancy. Error or failure detection is part of the pattern in the form of output validation. The pattern has high design complexity due to the need for functionally equivalent alternate system implementations.

System Scope

In the context of INTERSECT Systems, Subsystems, and Services, this pattern can be applied to INTERSECT systems and subsystems. It would be primarily applied to an entire infrastructure system and its subsystems, as opposed to an entire logical system that spans across multiple infrastructure systems. It could be applied to a logical subsystem of an infrastructure system only.

Service Scope

In the context of INTERSECT Systems, Subsystems, and Services, this pattern can be applied to an INTERSECT service. If it is applied to a group of services, then this is typically within the System Scope.

Microservice Scope

In the context of the INTERSECT Microservices Architecture, this pattern can be applied to an INTERSECT microservice. If it is applied to a group of microservices, then this is typically within the Service Scope.
